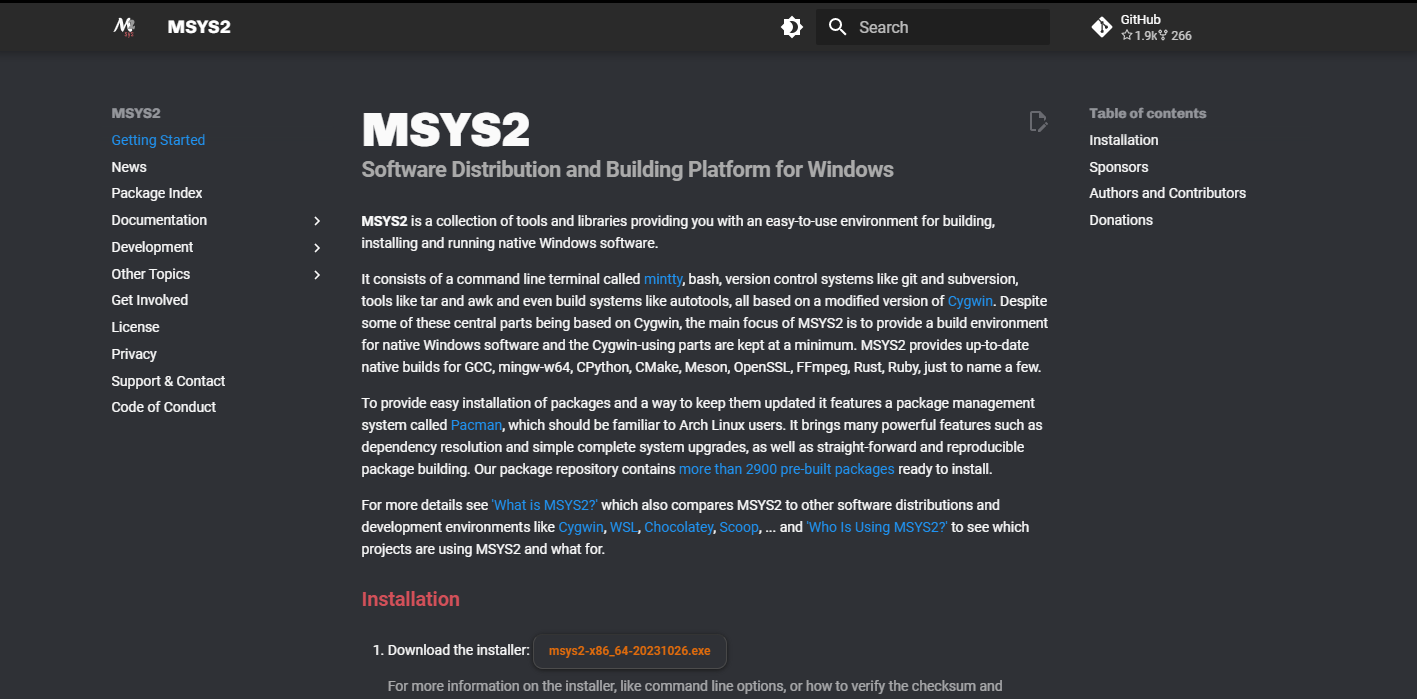

下载msys2

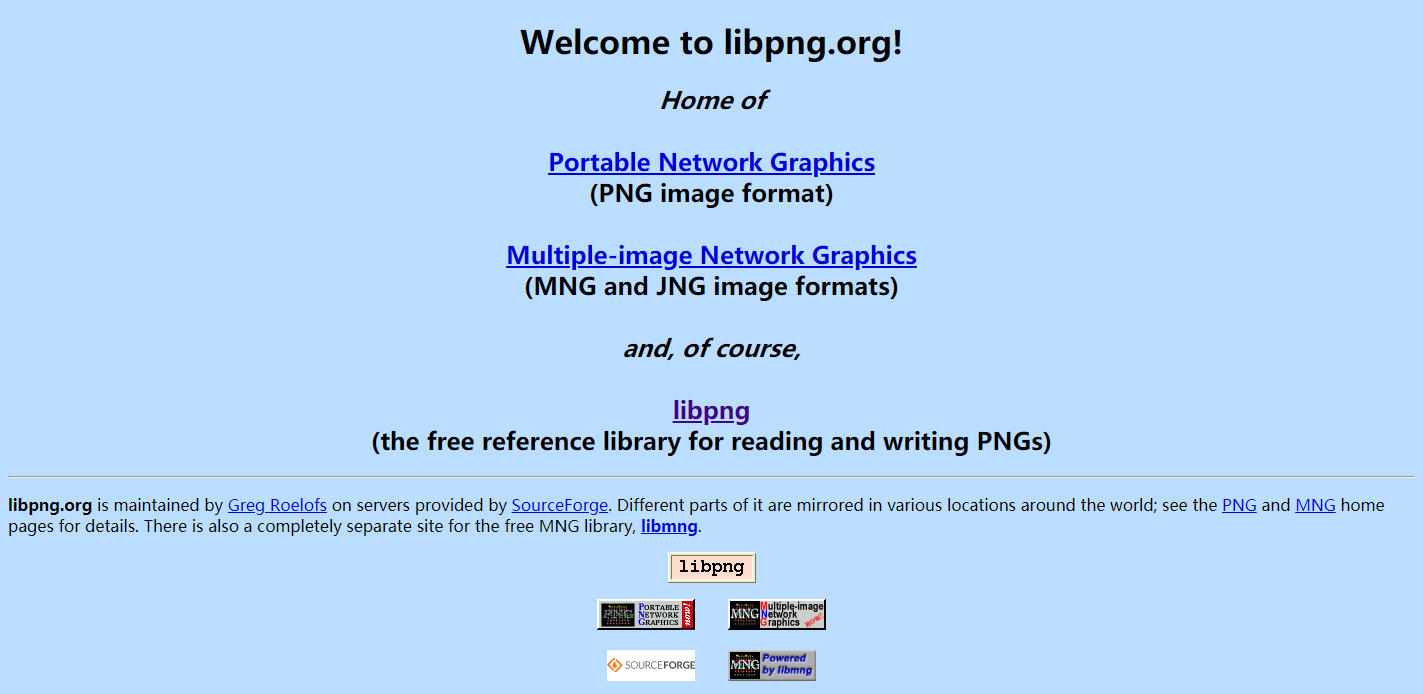

下载libpng源码

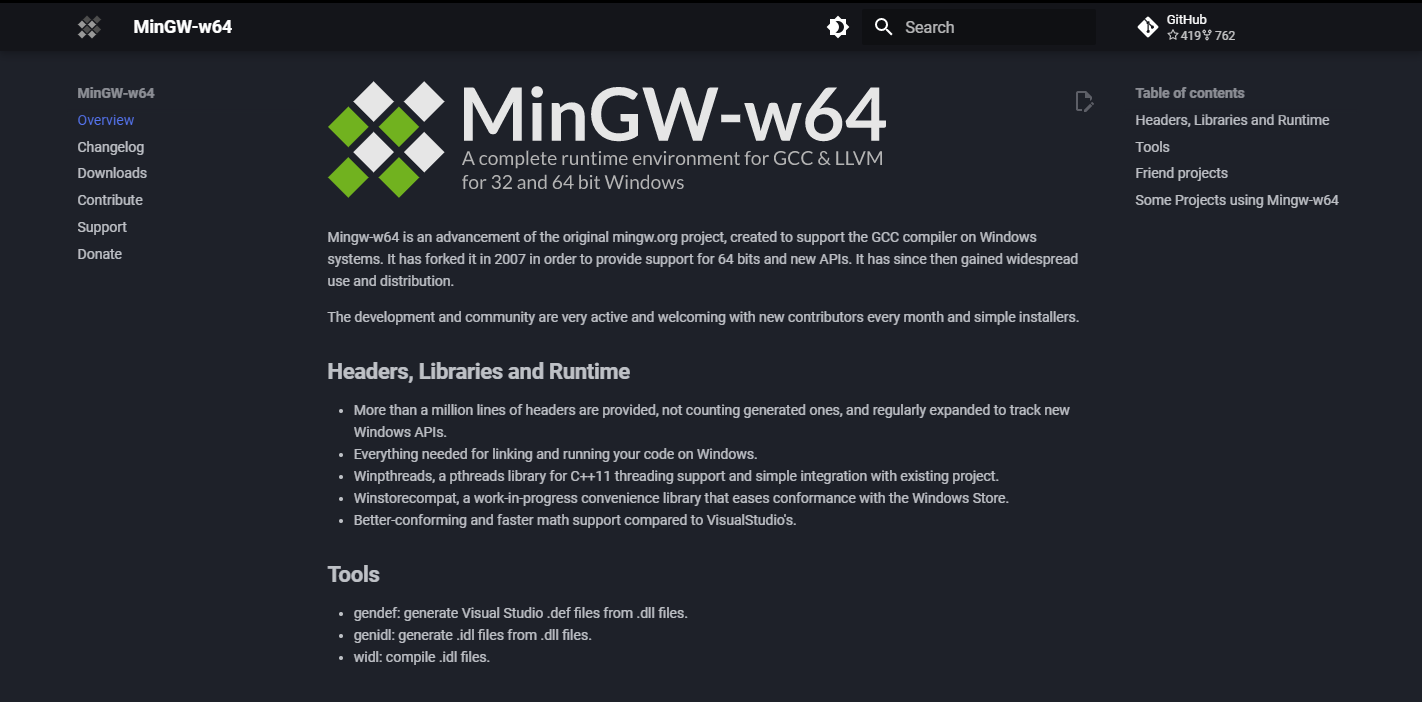

下载mingw
安装过程略，注意mingw要添加到系统的环境变量
启动msys2脚本msys2_shell.bat
需要继承windows系统的环境变量，三种方法选择一个就可以：
msys2_shell.cmd 中取消一行的注释：set MSYS2_PATH_TYPE=inherit
调用msys2_shell.cmd时使用-use-full-path参数
在windows系统的环境变量中添加 MSYS2_PATH_TYPE=inherit
测试环境搭建成功
$ g++ -dumpversion
4.9.4
能够输出mingw-g++版本说明正确
切换到libpng源码目录
$ cd /C/Users/m/Downloads/libpng-1.2.56.tar/libpng-1.2.56/
配置
./configure --prefix=/usr/local/libpng/
--prefix=/usr/local/libpng/ 指定了安装libpng到/usr/local/libpng/目录
其它的参数如
--enable-shared[=PKGS] build shared libraries [default=yes]
--enable-static[=PKGS] build static libraries [default=yes]
下面是配置过程的输出
$ ./configure --prefix=/usr/local/libpng
checking for a BSD-compatible install... /usr/bin/install -c
checking whether build environment is sane... yes
checking for a thread-safe mkdir -p... /usr/bin/mkdir -p
checking for gawk... gawk
checking whether make sets $(MAKE)... yes
checking whether make supports nested variables... yes
checking whether to enable maintainer-specific portions of Makefiles... no
checking for gcc... gcc
checking whether the C compiler works... yes
checking for C compiler default output file name... a.exe
checking for suffix of executables... .exe
checking whether we are cross compiling... no
checking for suffix of object files... o
checking whether we are using the GNU C compiler... yes
checking whether gcc accepts -g... yes
checking for gcc option to accept ISO C89... none needed
checking whether gcc understands -c and -o together... yes
checking for style of include used by make... GNU
checking dependency style of gcc... gcc3
checking build system type... x86_64-pc-msys
checking host system type... x86_64-pc-msys
checking for a sed that does not truncate output... /usr/bin/sed
checking for grep that handles long lines and -e... /usr/bin/grep
checking for egrep... /usr/bin/grep -E
checking for fgrep... /usr/bin/grep -F
checking how to print strings... printf
checking for ld used by gcc... D:/BuildChanTools/x86_64-4.9.4-release-posix-sjlj-rt_v5-rev0/mingw64/x86_64-w64-mingw32/bin/ld.exe
checking if the linker (D:/BuildChanTools/x86_64-4.9.4-release-posix-sjlj-rt_v5-rev0/mingw64/x86_64-w64-mingw32/bin/ld.exe) is GNU ld... yes
checking how to run the C preprocessor... gcc -E
checking for sed... /usr/bin/sed
checking whether ln -s works... no, using cp -pR
checking whether make sets $(MAKE)... (cached) yes
checking for BSD- or MS-compatible name lister (nm)... /d/BuildChanTools/x86_64-4.9.4-release-posix-sjlj-rt_v5-rev0/mingw64/bin/nm -B
checking the name lister (/d/BuildChanTools/x86_64-4.9.4-release-posix-sjlj-rt_v5-rev0/mingw64/bin/nm -B) interface... BSD nm
checking the maximum length of command line arguments... 24000
checking how to convert x86_64-pc-msys file names to x86_64-pc-msys format... func_convert_file_noop
checking how to convert x86_64-pc-msys file names to toolchain format... func_convert_file_noop
checking for D:/BuildChanTools/x86_64-4.9.4-release-posix-sjlj-rt_v5-rev0/mingw64/x86_64-w64-mingw32/bin/ld.exe option to reload object files... -r
checking for objdump... objdump
checking how to recognize dependent libraries... unknown
checking for dlltool... dlltool
checking how to associate runtime and link libraries... printf %s\n
checking for ar... ar
checking for archiver @FILE support... @
checking for strip... strip
checking for ranlib... ranlib
checking command to parse /d/BuildChanTools/x86_64-4.9.4-release-posix-sjlj-rt_v5-rev0/mingw64/bin/nm -B output from gcc object... ok
checking for sysroot... no
checking for a working dd... ./configure: line 6925: cmp: command not found
./configure: line 6925: cmp: command not found
checking how to truncate binary pipes... /usr/bin/sed -e 4q
checking for mt... no
checking if : is a manifest tool... no
checking for ANSI C header files... yes
checking for sys/types.h... yes
checking for sys/stat.h... yes
checking for stdlib.h... yes
checking for string.h... yes
checking for memory.h... yes
checking for strings.h... yes
checking for inttypes.h... yes
checking for stdint.h... yes
checking for unistd.h... yes
checking for dlfcn.h... no
checking for objdir... .libs
checking if gcc supports -fno-rtti -fno-exceptions... ./configure: line 8715: diff: command not found
no
checking for gcc option to produce PIC... -fPIC -DPIC
checking if gcc PIC flag -fPIC -DPIC works... ./configure: line 9123: diff: command not found
no
checking if gcc static flag -static works... yes
checking if gcc supports -c -o file.o... yes
checking if gcc supports -c -o file.o... (cached) yes
checking whether the gcc linker (D:/BuildChanTools/x86_64-4.9.4-release-posix-sjlj-rt_v5-rev0/mingw64/x86_64-w64-mingw32/bin/ld.exe) supports shared libraries... yes
checking whether -lc should be explicitly linked in... yes
checking dynamic linker characteristics... no
checking how to hardcode library paths into programs... immediate
checking whether stripping libraries is possible... yes
checking if libtool supports shared libraries... no
checking whether to build shared libraries... no
checking whether to build static libraries... yes
checking for ANSI C header files... (cached) yes
checking malloc.h usability... yes
checking malloc.h presence... yes
checking for malloc.h... yes
checking for stdlib.h... (cached) yes
checking for string.h... (cached) yes
checking for strings.h... (cached) yes
checking for an ANSI C-conforming const... yes
checking for size_t... yes
checking whether struct tm is in sys/time.h or time.h... time.h
checking for working strtod... yes
checking for memset... yes
checking for pow... yes
checking for zlibVersion in -lz... yes
checking if assembler code in pnggccrd.c can be compiled without PNG_NO_MMX_CODE... yes
checking if libraries can be versioned... yes
checking for symbol prefix...
configure: pkgconfig directory is ${libdir}/pkgconfig
checking that generated files are newer than configure... done
configure: creating ./config.status
config.status: creating Makefile
config.status: creating libpng.pc
config.status: creating libpng-config
config.status: creating config.h
config.status: executing depfiles commands
config.status: executing libtool commands

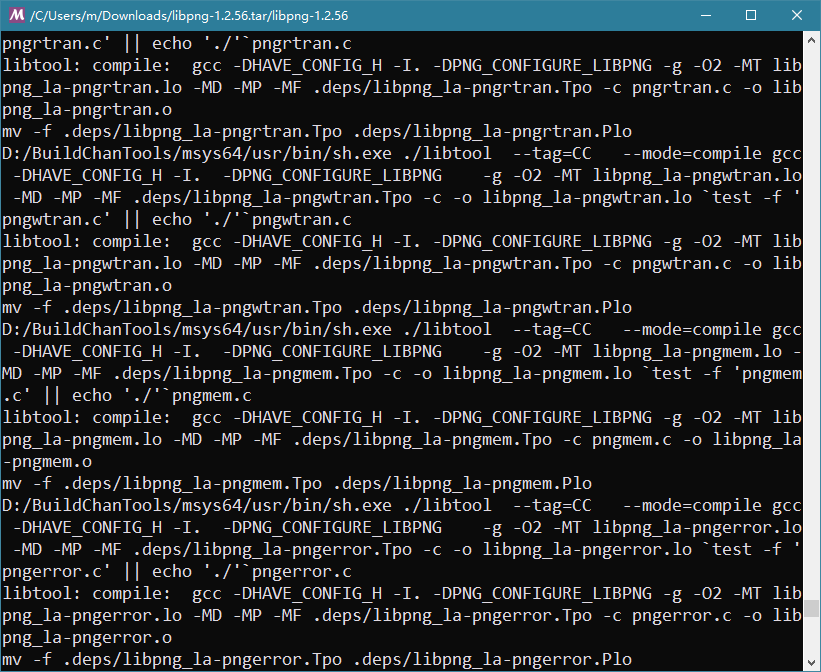

开始编译
$ mingw32-make
输出
$ mingw32-make
D:/BuildChanTools/x86_64-4.9.4-release-posix-sjlj-rt_v5-rev0/mingw64/bin/mingw32-make all-am
mingw32-make[1]: Entering directory 'C:/Users/m/Downloads/libpng-1.2.56.tar/libpng-1.2.56'
D:/BuildChanTools/msys64/usr/bin/sh.exe ./libtool --tag=CC --mode=compile gcc -DHAVE_CONFIG_H -I. -DPNG_CONFIGURE_LIBPNG -g -O2 -MT libpng12_la-png.lo -MD -MP -MF .deps/libpng12_la-png.Tpo -c -o libpng12_la-png.lo `test -f 'png.c' || echo './'`png.c
libtool: compile: gcc -DHAVE_CONFIG_H -I. -DPNG_CONFIGURE_LIBPNG -g -O2 -MT libpng12_la-png.lo -MD -MP -MF .deps/libpng12_la-png.Tpo -c png.c -o libpng12_la-png.o
mv -f .deps/libpng12_la-png.Tpo .deps/libpng12_la-png.Plo
D:/BuildChanTools/msys64/usr/bin/sh.exe ./libtool --tag=CC --mode=compile gcc -DHAVE_CONFIG_H -I. -DPNG_CONFIGURE_LIBPNG -g -O2 -MT libpng12_la-pngset.lo -MD -MP -MF .deps/libpng12_la-pngset.Tpo -c -o libpng12_la-pngset.lo `test -f 'pngset.c' || echo './'`pngset.c
libtool: compile: gcc -DHAVE_CONFIG_H -I. -DPNG_CONFIGURE_LIBPNG -g -O2 -MT libpng12_la-pngset.lo -MD -MP -MF .deps/libpng12_la-pngset.Tpo -c pngset.c -o libpng12_la-pngset.o
mv -f .deps/libpng12_la-pngset.Tpo .deps/libpng12_la-pngset.Plo
D:/BuildChanTools/msys64/usr/bin/sh.exe ./libtool --tag=CC --mode=compile gcc -DHAVE_CONFIG_H -I. -DPNG_CONFIGURE_LIBPNG -g -O2 -MT libpng12_la-pngget.lo -MD -MP -MF .deps/libpng12_la-pngget.Tpo -c -o libpng12_la-pngget.lo `test -f 'pngget.c' || echo './'`pngget.c
libtool: compile: gcc -DHAVE_CONFIG_H -I. -DPNG_CONFIGURE_LIBPNG -g -O2 -MT libpng12_la-pngget.lo -MD -MP -MF .deps/libpng12_la-pngget.Tpo -c pngget.c -o libpng12_la-pngget.o
mv -f .deps/libpng12_la-pngget.Tpo .deps/libpng12_la-pngget.Plo
D:/BuildChanTools/msys64/usr/bin/sh.exe ./libtool --tag=CC --mode=compile gcc -DHAVE_CONFIG_H -I. -DPNG_CONFIGURE_LIBPNG -g -O2 -MT libpng12_la-pngrutil.lo -MD -MP -MF .deps/libpng12_la-pngrutil.Tpo -c -o libpng12_la-pngrutil.lo `test -f 'pngrutil.c' || echo './'`pngrutil.c
libtool: compile: gcc -DHAVE_CONFIG_H -I. -DPNG_CONFIGURE_LIBPNG -g -O2 -MT libpng12_la-pngrutil.lo -MD -MP -MF .deps/libpng12_la-pngrutil.Tpo -c pngrutil.c -o libpng12_la-pngrutil.o
mv -f .deps/libpng12_la-pngrutil.Tpo .deps/libpng12_la-pngrutil.Plo
D:/BuildChanTools/msys64/usr/bin/sh.exe ./libtool --tag=CC --mode=compile gcc -DHAVE_CONFIG_H -I. -DPNG_CONFIGURE_LIBPNG -g -O2 -MT libpng12_la-pngtrans.lo -MD -MP -MF .deps/libpng12_la-pngtrans.Tpo -c -o libpng12_la-pngtrans.lo `test -f 'pngtrans.c' || echo './'`pngtrans.c
libtool: compile: gcc -DHAVE_CONFIG_H -I. -DPNG_CONFIGURE_LIBPNG -g -O2 -MT libpng12_la-pngtrans.lo -MD -MP -MF .deps/libpng12_la-pngtrans.Tpo -c pngtrans.c -o libpng12_la-pngtrans.o
mv -f .deps/libpng12_la-pngtrans.Tpo .deps/libpng12_la-pngtrans.Plo
D:/BuildChanTools/msys64/usr/bin/sh.exe ./libtool --tag=CC --mode=compile gcc -DHAVE_CONFIG_H -I. -DPNG_CONFIGURE_LIBPNG -g -O2 -MT libpng12_la-pngwutil.lo -MD -MP -MF .deps/libpng12_la-pngwutil.Tpo -c -o libpng12_la-pngwutil.lo `test -f 'pngwutil.c' || echo './'`pngwutil.c
libtool: compile: gcc -DHAVE_CONFIG_H -I. -DPNG_CONFIGURE_LIBPNG -g -O2 -MT libpng12_la-pngwutil.lo -MD -MP -MF .deps/libpng12_la-pngwutil.Tpo -c pngwutil.c -o libpng12_la-pngwutil.o
mv -f .deps/libpng12_la-pngwutil.Tpo .deps/libpng12_la-pngwutil.Plo
D:/BuildChanTools/msys64/usr/bin/sh.exe ./libtool --tag=CC --mode=compile gcc -DHAVE_CONFIG_H -I. -DPNG_CONFIGURE_LIBPNG -g -O2 -MT libpng12_la-pngread.lo -MD -MP -MF .deps/libpng12_la-pngread.Tpo -c -o libpng12_la-pngread.lo `test -f 'pngread.c' || echo './'`pngread.c
libtool: compile: gcc -DHAVE_CONFIG_H -I. -DPNG_CONFIGURE_LIBPNG -g -O2 -MT libpng12_la-pngread.lo -MD -MP -MF .deps/libpng12_la-pngread.Tpo -c pngread.c -o libpng12_la-pngread.o
mv -f .deps/libpng12_la-pngread.Tpo .deps/libpng12_la-pngread.Plo
D:/BuildChanTools/msys64/usr/bin/sh.exe ./libtool --tag=CC --mode=compile gcc -DHAVE_CONFIG_H -I. -DPNG_CONFIGURE_LIBPNG -g -O2 -MT libpng12_la-pngrio.lo -MD -MP -MF .deps/libpng12_la-pngrio.Tpo -c -o libpng12_la-pngrio.lo `test -f 'pngrio.c' || echo './'`pngrio.c
libtool: compile: gcc -DHAVE_CONFIG_H -I. -DPNG_CONFIGURE_LIBPNG -g -O2 -MT libpng12_la-pngrio.lo -MD -MP -MF .deps/libpng12_la-pngrio.Tpo -c pngrio.c -o libpng12_la-pngrio.o
mv -f .deps/libpng12_la-pngrio.Tpo .deps/libpng12_la-pngrio.Plo
D:/BuildChanTools/msys64/usr/bin/sh.exe ./libtool --tag=CC --mode=compile gcc -DHAVE_CONFIG_H -I. -DPNG_CONFIGURE_LIBPNG -g -O2 -MT libpng12_la-pngwio.lo -MD -MP -MF .deps/libpng12_la-pngwio.Tpo -c -o libpng12_la-pngwio.lo `test -f 'pngwio.c' || echo './'`pngwio.c
libtool: compile: gcc -DHAVE_CONFIG_H -I. -DPNG_CONFIGURE_LIBPNG -g -O2 -MT libpng12_la-pngwio.lo -MD -MP -MF .deps/libpng12_la-pngwio.Tpo -c pngwio.c -o libpng12_la-pngwio.o
mv -f .deps/libpng12_la-pngwio.Tpo .deps/libpng12_la-pngwio.Plo
D:/BuildChanTools/msys64/usr/bin/sh.exe ./libtool --tag=CC --mode=compile gcc -DHAVE_CONFIG_H -I. -DPNG_CONFIGURE_LIBPNG -g -O2 -MT libpng12_la-pngwrite.lo -MD -MP -MF .deps/libpng12_la-pngwrite.Tpo -c -o libpng12_la-pngwrite.lo `test -f 'pngwrite.c' || echo './'`pngwrite.c
libtool: compile: gcc -DHAVE_CONFIG_H -I. -DPNG_CONFIGURE_LIBPNG -g -O2 -MT libpng12_la-pngwrite.lo -MD -MP -MF .deps/libpng12_la-pngwrite.Tpo -c pngwrite.c -o libpng12_la-pngwrite.o
mv -f .deps/libpng12_la-pngwrite.Tpo .deps/libpng12_la-pngwrite.Plo
D:/BuildChanTools/msys64/usr/bin/sh.exe ./libtool --tag=CC --mode=compile gcc -DHAVE_CONFIG_H -I. -DPNG_CONFIGURE_LIBPNG -g -O2 -MT libpng12_la-pngrtran.lo -MD -MP -MF .deps/libpng12_la-pngrtran.Tpo -c -o libpng12_la-pngrtran.lo `test -f 'pngrtran.c' || echo './'`pngrtran.c
libtool: compile: gcc -DHAVE_CONFIG_H -I. -DPNG_CONFIGURE_LIBPNG -g -O2 -MT libpng12_la-pngrtran.lo -MD -MP -MF .deps/libpng12_la-pngrtran.Tpo -c pngrtran.c -o libpng12_la-pngrtran.o
mv -f .deps/libpng12_la-pngrtran.Tpo .deps/libpng12_la-pngrtran.Plo
D:/BuildChanTools/msys64/usr/bin/sh.exe ./libtool --tag=CC --mode=compile gcc -DHAVE_CONFIG_H -I. -DPNG_CONFIGURE_LIBPNG -g -O2 -MT libpng12_la-pngwtran.lo -MD -MP -MF .deps/libpng12_la-pngwtran.Tpo -c -o libpng12_la-pngwtran.lo `test -f 'pngwtran.c' || echo './'`pngwtran.c
libtool: compile: gcc -DHAVE_CONFIG_H -I. -DPNG_CONFIGURE_LIBPNG -g -O2 -MT libpng12_la-pngwtran.lo -MD -MP -MF .deps/libpng12_la-pngwtran.Tpo -c pngwtran.c -o libpng12_la-pngwtran.o
mv -f .deps/libpng12_la-pngwtran.Tpo .deps/libpng12_la-pngwtran.Plo
D:/BuildChanTools/msys64/usr/bin/sh.exe ./libtool --tag=CC --mode=compile gcc -DHAVE_CONFIG_H -I. -DPNG_CONFIGURE_LIBPNG -g -O2 -MT libpng12_la-pngmem.lo -MD -MP -MF .deps/libpng12_la-pngmem.Tpo -c -o libpng12_la-pngmem.lo `test -f 'pngmem.c' || echo './'`pngmem.c
libtool: compile: gcc -DHAVE_CONFIG_H -I. -DPNG_CONFIGURE_LIBPNG -g -O2 -MT libpng12_la-pngmem.lo -MD -MP -MF .deps/libpng12_la-pngmem.Tpo -c pngmem.c -o libpng12_la-pngmem.o
mv -f .deps/libpng12_la-pngmem.Tpo .deps/libpng12_la-pngmem.Plo
D:/BuildChanTools/msys64/usr/bin/sh.exe ./libtool --tag=CC --mode=compile gcc -DHAVE_CONFIG_H -I. -DPNG_CONFIGURE_LIBPNG -g -O2 -MT libpng12_la-pngerror.lo -MD -MP -MF .deps/libpng12_la-pngerror.Tpo -c -o libpng12_la-pngerror.lo `test -f 'pngerror.c' || echo './'`pngerror.c
libtool: compile: gcc -DHAVE_CONFIG_H -I. -DPNG_CONFIGURE_LIBPNG -g -O2 -MT libpng12_la-pngerror.lo -MD -MP -MF .deps/libpng12_la-pngerror.Tpo -c pngerror.c -o libpng12_la-pngerror.o
mv -f .deps/libpng12_la-pngerror.Tpo .deps/libpng12_la-pngerror.Plo
D:/BuildChanTools/msys64/usr/bin/sh.exe ./libtool --tag=CC --mode=compile gcc -DHAVE_CONFIG_H -I. -DPNG_CONFIGURE_LIBPNG -g -O2 -MT libpng12_la-pngpread.lo -MD -MP -MF .deps/libpng12_la-pngpread.Tpo -c -o libpng12_la-pngpread.lo `test -f 'pngpread.c' || echo './'`pngpread.c
libtool: compile: gcc -DHAVE_CONFIG_H -I. -DPNG_CONFIGURE_LIBPNG -g -O2 -MT libpng12_la-pngpread.lo -MD -MP -MF .deps/libpng12_la-pngpread.Tpo -c pngpread.c -o libpng12_la-pngpread.o
mv -f .deps/libpng12_la-pngpread.Tpo .deps/libpng12_la-pngpread.Plo
D:/BuildChanTools/msys64/usr/bin/sh.exe ./libtool --tag=CC --mode=link gcc -g -O2 -no-undefined -export-dynamic -version-number 0:56:0 -Wl,--version-script=libpng.vers -o libpng12.la -rpath /usr/local/libpng/lib libpng12_la-png.lo libpng12_la-pngset.lo libpng12_la-pngget.lo libpng12_la-pngrutil.lo libpng12_la-pngtrans.lo libpng12_la-pngwutil.lo libpng12_la-pngread.lo libpng12_la-pngrio.lo libpng12_la-pngwio.lo libpng12_la-pngwrite.lo libpng12_la-pngrtran.lo libpng12_la-pngwtran.lo libpng12_la-pngmem.lo libpng12_la-pngerror.lo libpng12_la-pngpread.lo -lz
libtool: link: rm -fr .libs/libpng12.a .libs/libpng12.la .libs/libpng12.lai
libtool: link: ar cru .libs/libpng12.a libpng12_la-png.o libpng12_la-pngset.o libpng12_la-pngget.o libpng12_la-pngrutil.o libpng12_la-pngtrans.o libpng12_la-pngwutil.o libpng12_la-pngread.o libpng12_la-pngrio.o libpng12_la-pngwio.o libpng12_la-pngwrite.o libpng12_la-pngrtran.o libpng12_la-pngwtran.o libpng12_la-pngmem.o libpng12_la-pngerror.o libpng12_la-pngpread.o
libtool: link: ranlib .libs/libpng12.a
libtool: link: ( cd ".libs" && rm -f "libpng12.la" && cp -pR "../libpng12.la" "libpng12.la" )
D:/BuildChanTools/msys64/usr/bin/sh.exe ./libtool --tag=CC --mode=compile gcc -DHAVE_CONFIG_H -I. -DPNG_CONFIGURE_LIBPNG -g -O2 -MT libpng_la-png.lo -MD -MP -MF .deps/libpng_la-png.Tpo -c -o libpng_la-png.lo `test -f 'png.c' || echo './'`png.c
libtool: compile: gcc -DHAVE_CONFIG_H -I. -DPNG_CONFIGURE_LIBPNG -g -O2 -MT libpng_la-png.lo -MD -MP -MF .deps/libpng_la-png.Tpo -c png.c -o libpng_la-png.o
mv -f .deps/libpng_la-png.Tpo .deps/libpng_la-png.Plo
D:/BuildChanTools/msys64/usr/bin/sh.exe ./libtool --tag=CC --mode=compile gcc -DHAVE_CONFIG_H -I. -DPNG_CONFIGURE_LIBPNG -g -O2 -MT libpng_la-pngset.lo -MD -MP -MF .deps/libpng_la-pngset.Tpo -c -o libpng_la-pngset.lo `test -f 'pngset.c' || echo './'`pngset.c
libtool: compile: gcc -DHAVE_CONFIG_H -I. -DPNG_CONFIGURE_LIBPNG -g -O2 -MT libpng_la-pngset.lo -MD -MP -MF .deps/libpng_la-pngset.Tpo -c pngset.c -o libpng_la-pngset.o
mv -f .deps/libpng_la-pngset.Tpo .deps/libpng_la-pngset.Plo
D:/BuildChanTools/msys64/usr/bin/sh.exe ./libtool --tag=CC --mode=compile gcc -DHAVE_CONFIG_H -I. -DPNG_CONFIGURE_LIBPNG -g -O2 -MT libpng_la-pngget.lo -MD -MP -MF .deps/libpng_la-pngget.Tpo -c -o libpng_la-pngget.lo `test -f 'pngget.c' || echo './'`pngget.c
libtool: compile: gcc -DHAVE_CONFIG_H -I. -DPNG_CONFIGURE_LIBPNG -g -O2 -MT libpng_la-pngget.lo -MD -MP -MF .deps/libpng_la-pngget.Tpo -c pngget.c -o libpng_la-pngget.o
mv -f .deps/libpng_la-pngget.Tpo .deps/libpng_la-pngget.Plo
D:/BuildChanTools/msys64/usr/bin/sh.exe ./libtool --tag=CC --mode=compile gcc -DHAVE_CONFIG_H -I. -DPNG_CONFIGURE_LIBPNG -g -O2 -MT libpng_la-pngrutil.lo -MD -MP -MF .deps/libpng_la-pngrutil.Tpo -c -o libpng_la-pngrutil.lo `test -f 'pngrutil.c' || echo './'`pngrutil.c
libtool: compile: gcc -DHAVE_CONFIG_H -I. -DPNG_CONFIGURE_LIBPNG -g -O2 -MT libpng_la-pngrutil.lo -MD -MP -MF .deps/libpng_la-pngrutil.Tpo -c pngrutil.c -o libpng_la-pngrutil.o
mv -f .deps/libpng_la-pngrutil.Tpo .deps/libpng_la-pngrutil.Plo
D:/BuildChanTools/msys64/usr/bin/sh.exe ./libtool --tag=CC --mode=compile gcc -DHAVE_CONFIG_H -I. -DPNG_CONFIGURE_LIBPNG -g -O2 -MT libpng_la-pngtrans.lo -MD -MP -MF .deps/libpng_la-pngtrans.Tpo -c -o libpng_la-pngtrans.lo `test -f 'pngtrans.c' || echo './'`pngtrans.c
libtool: compile: gcc -DHAVE_CONFIG_H -I. -DPNG_CONFIGURE_LIBPNG -g -O2 -MT libpng_la-pngtrans.lo -MD -MP -MF .deps/libpng_la-pngtrans.Tpo -c pngtrans.c -o libpng_la-pngtrans.o
mv -f .deps/libpng_la-pngtrans.Tpo .deps/libpng_la-pngtrans.Plo
D:/BuildChanTools/msys64/usr/bin/sh.exe ./libtool --tag=CC --mode=compile gcc -DHAVE_CONFIG_H -I. -DPNG_CONFIGURE_LIBPNG -g -O2 -MT libpng_la-pngwutil.lo -MD -MP -MF .deps/libpng_la-pngwutil.Tpo -c -o libpng_la-pngwutil.lo `test -f 'pngwutil.c' || echo './'`pngwutil.c
libtool: compile: gcc -DHAVE_CONFIG_H -I. -DPNG_CONFIGURE_LIBPNG -g -O2 -MT libpng_la-pngwutil.lo -MD -MP -MF .deps/libpng_la-pngwutil.Tpo -c pngwutil.c -o libpng_la-pngwutil.o
mv -f .deps/libpng_la-pngwutil.Tpo .deps/libpng_la-pngwutil.Plo
D:/BuildChanTools/msys64/usr/bin/sh.exe ./libtool --tag=CC --mode=compile gcc -DHAVE_CONFIG_H -I. -DPNG_CONFIGURE_LIBPNG -g -O2 -MT libpng_la-pngread.lo -MD -MP -MF .deps/libpng_la-pngread.Tpo -c -o libpng_la-pngread.lo `test -f 'pngread.c' || echo './'`pngread.c
libtool: compile: gcc -DHAVE_CONFIG_H -I. -DPNG_CONFIGURE_LIBPNG -g -O2 -MT libpng_la-pngread.lo -MD -MP -MF .deps/libpng_la-pngread.Tpo -c pngread.c -o libpng_la-pngread.o
mv -f .deps/libpng_la-pngread.Tpo .deps/libpng_la-pngread.Plo
D:/BuildChanTools/msys64/usr/bin/sh.exe ./libtool --tag=CC --mode=compile gcc -DHAVE_CONFIG_H -I. -DPNG_CONFIGURE_LIBPNG -g -O2 -MT libpng_la-pngrio.lo -MD -MP -MF .deps/libpng_la-pngrio.Tpo -c -o libpng_la-pngrio.lo `test -f 'pngrio.c' || echo './'`pngrio.c
libtool: compile: gcc -DHAVE_CONFIG_H -I. -DPNG_CONFIGURE_LIBPNG -g -O2 -MT libpng_la-pngrio.lo -MD -MP -MF .deps/libpng_la-pngrio.Tpo -c pngrio.c -o libpng_la-pngrio.o
mv -f .deps/libpng_la-pngrio.Tpo .deps/libpng_la-pngrio.Plo
D:/BuildChanTools/msys64/usr/bin/sh.exe ./libtool --tag=CC --mode=compile gcc -DHAVE_CONFIG_H -I. -DPNG_CONFIGURE_LIBPNG -g -O2 -MT libpng_la-pngwio.lo -MD -MP -MF .deps/libpng_la-pngwio.Tpo -c -o libpng_la-pngwio.lo `test -f 'pngwio.c' || echo './'`pngwio.c
libtool: compile: gcc -DHAVE_CONFIG_H -I. -DPNG_CONFIGURE_LIBPNG -g -O2 -MT libpng_la-pngwio.lo -MD -MP -MF .deps/libpng_la-pngwio.Tpo -c pngwio.c -o libpng_la-pngwio.o
mv -f .deps/libpng_la-pngwio.Tpo .deps/libpng_la-pngwio.Plo
D:/BuildChanTools/msys64/usr/bin/sh.exe ./libtool --tag=CC --mode=compile gcc -DHAVE_CONFIG_H -I. -DPNG_CONFIGURE_LIBPNG -g -O2 -MT libpng_la-pngwrite.lo -MD -MP -MF .deps/libpng_la-pngwrite.Tpo -c -o libpng_la-pngwrite.lo `test -f 'pngwrite.c' || echo './'`pngwrite.c
libtool: compile: gcc -DHAVE_CONFIG_H -I. -DPNG_CONFIGURE_LIBPNG -g -O2 -MT libpng_la-pngwrite.lo -MD -MP -MF .deps/libpng_la-pngwrite.Tpo -c pngwrite.c -o libpng_la-pngwrite.o
mv -f .deps/libpng_la-pngwrite.Tpo .deps/libpng_la-pngwrite.Plo
D:/BuildChanTools/msys64/usr/bin/sh.exe ./libtool --tag=CC --mode=compile gcc -DHAVE_CONFIG_H -I. -DPNG_CONFIGURE_LIBPNG -g -O2 -MT libpng_la-pngrtran.lo -MD -MP -MF .deps/libpng_la-pngrtran.Tpo -c -o libpng_la-pngrtran.lo `test -f 'pngrtran.c' || echo './'`pngrtran.c
libtool: compile: gcc -DHAVE_CONFIG_H -I. -DPNG_CONFIGURE_LIBPNG -g -O2 -MT libpng_la-pngrtran.lo -MD -MP -MF .deps/libpng_la-pngrtran.Tpo -c pngrtran.c -o libpng_la-pngrtran.o
mv -f .deps/libpng_la-pngrtran.Tpo .deps/libpng_la-pngrtran.Plo
D:/BuildChanTools/msys64/usr/bin/sh.exe ./libtool --tag=CC --mode=compile gcc -DHAVE_CONFIG_H -I. -DPNG_CONFIGURE_LIBPNG -g -O2 -MT libpng_la-pngwtran.lo -MD -MP -MF .deps/libpng_la-pngwtran.Tpo -c -o libpng_la-pngwtran.lo `test -f 'pngwtran.c' || echo './'`pngwtran.c
libtool: compile: gcc -DHAVE_CONFIG_H -I. -DPNG_CONFIGURE_LIBPNG -g -O2 -MT libpng_la-pngwtran.lo -MD -MP -MF .deps/libpng_la-pngwtran.Tpo -c pngwtran.c -o libpng_la-pngwtran.o
mv -f .deps/libpng_la-pngwtran.Tpo .deps/libpng_la-pngwtran.Plo
D:/BuildChanTools/msys64/usr/bin/sh.exe ./libtool --tag=CC --mode=compile gcc -DHAVE_CONFIG_H -I. -DPNG_CONFIGURE_LIBPNG -g -O2 -MT libpng_la-pngmem.lo -MD -MP -MF .deps/libpng_la-pngmem.Tpo -c -o libpng_la-pngmem.lo `test -f 'pngmem.c' || echo './'`pngmem.c
libtool: compile: gcc -DHAVE_CONFIG_H -I. -DPNG_CONFIGURE_LIBPNG -g -O2 -MT libpng_la-pngmem.lo -MD -MP -MF .deps/libpng_la-pngmem.Tpo -c pngmem.c -o libpng_la-pngmem.o
mv -f .deps/libpng_la-pngmem.Tpo .deps/libpng_la-pngmem.Plo
D:/BuildChanTools/msys64/usr/bin/sh.exe ./libtool --tag=CC --mode=compile gcc -DHAVE_CONFIG_H -I. -DPNG_CONFIGURE_LIBPNG -g -O2 -MT libpng_la-pngerror.lo -MD -MP -MF .deps/libpng_la-pngerror.Tpo -c -o libpng_la-pngerror.lo `test -f 'pngerror.c' || echo './'`pngerror.c
libtool: compile: gcc -DHAVE_CONFIG_H -I. -DPNG_CONFIGURE_LIBPNG -g -O2 -MT libpng_la-pngerror.lo -MD -MP -MF .deps/libpng_la-pngerror.Tpo -c pngerror.c -o libpng_la-pngerror.o
mv -f .deps/libpng_la-pngerror.Tpo .deps/libpng_la-pngerror.Plo
D:/BuildChanTools/msys64/usr/bin/sh.exe ./libtool --tag=CC --mode=compile gcc -DHAVE_CONFIG_H -I. -DPNG_CONFIGURE_LIBPNG -g -O2 -MT libpng_la-pngpread.lo -MD -MP -MF .deps/libpng_la-pngpread.Tpo -c -o libpng_la-pngpread.lo `test -f 'pngpread.c' || echo './'`pngpread.c
libtool: compile: gcc -DHAVE_CONFIG_H -I. -DPNG_CONFIGURE_LIBPNG -g -O2 -MT libpng_la-pngpread.lo -MD -MP -MF .deps/libpng_la-pngpread.Tpo -c pngpread.c -o libpng_la-pngpread.o
mv -f .deps/libpng_la-pngpread.Tpo .deps/libpng_la-pngpread.Plo
D:/BuildChanTools/msys64/usr/bin/sh.exe ./libtool --tag=CC --mode=link gcc -g -O2 -rpath '/usr/local/libpng/lib' -no-undefined -export-dynamic -version-number 3:56:0 -o libpng.la libpng_la-png.lo libpng_la-pngset.lo libpng_la-pngget.lo libpng_la-pngrutil.lo libpng_la-pngtrans.lo libpng_la-pngwutil.lo libpng_la-pngread.lo libpng_la-pngrio.lo libpng_la-pngwio.lo libpng_la-pngwrite.lo libpng_la-pngrtran.lo libpng_la-pngwtran.lo libpng_la-pngmem.lo libpng_la-pngerror.lo libpng_la-pngpread.lo -lz
libtool: link: rm -fr .libs/libpng.a .libs/libpng.la .libs/libpng.lai
libtool: link: ar cru .libs/libpng.a libpng_la-png.o libpng_la-pngset.o libpng_la-pngget.o libpng_la-pngrutil.o libpng_la-pngtrans.o libpng_la-pngwutil.o libpng_la-pngread.o libpng_la-pngrio.o libpng_la-pngwio.o libpng_la-pngwrite.o libpng_la-pngrtran.o libpng_la-pngwtran.o libpng_la-pngmem.o libpng_la-pngerror.o libpng_la-pngpread.o
libtool: link: ranlib .libs/libpng.a
libtool: link: ( cd ".libs" && rm -f "libpng.la" && cp -pR "../libpng.la" "libpng.la" )
cp libpng-config libpng12-config
cp libpng.pc libpng12.pc
mingw32-make[1]: Leaving directory 'C:/Users/m/Downloads/libpng-1.2.56.tar/libpng-1.2.56'
安装
$ mingw32-make install
$ mingw32-make install
mingw32-make[1]: Entering directory 'C:/Users/m/Downloads/libpng-1.2.56.tar/libpng-1.2.56'
/usr/bin/mkdir -p '/usr/local/libpng/bin'
/usr/bin/install -c libpng12-config '/usr/local/libpng/bin'
/usr/bin/mkdir -p '/usr/local/libpng/lib'
D:/BuildChanTools/msys64/usr/bin/sh.exe ./libtool --mode=install /usr/bin/install -c libpng12.la libpng.la '/usr/local/libpng/lib'
libtool: install: /usr/bin/install -c .libs/libpng12.lai /usr/local/libpng/lib/libpng12.la
libtool: install: /usr/bin/install -c .libs/libpng.lai /usr/local/libpng/lib/libpng.la
libtool: install: /usr/bin/install -c .libs/libpng12.a /usr/local/libpng/lib/libpng12.a
libtool: install: chmod 644 /usr/local/libpng/lib/libpng12.a
libtool: install: ranlib /usr/local/libpng/lib/libpng12.a
libtool: install: /usr/bin/install -c .libs/libpng.a /usr/local/libpng/lib/libpng.a
libtool: install: chmod 644 /usr/local/libpng/lib/libpng.a
libtool: install: ranlib /usr/local/libpng/lib/libpng.a
D:/BuildChanTools/x86_64-4.9.4-release-posix-sjlj-rt_v5-rev0/mingw64/bin/mingw32-make install-exec-hook
mingw32-make[2]: Entering directory 'C:/Users/m/Downloads/libpng-1.2.56.tar/libpng-1.2.56'
cd /usr/local/libpng/bin; rm -f libpng-config
cd /usr/local/libpng/bin; cp -pR libpng12-config libpng-config
+ cd /usr/local/libpng/lib
+ for ext in a la so sl dylib
+ rm -f libpng.a
+ test -f libpng12.a
+ cp -pR libpng12.a libpng.a
+ for ext in a la so sl dylib
+ rm -f libpng.la
+ test -f libpng12.la
+ cp -pR libpng12.la libpng.la
+ for ext in a la so sl dylib
+ rm -f libpng.so
+ test -f libpng12.so
+ for ext in a la so sl dylib
+ rm -f libpng.sl
+ test -f libpng12.sl
+ for ext in a la so sl dylib
+ rm -f libpng.dylib
+ test -f libpng12.dylib
mingw32-make[2]: Leaving directory 'C:/Users/m/Downloads/libpng-1.2.56.tar/libpng-1.2.56'
/usr/bin/mkdir -p '/usr/local/libpng/share/man/man3'
/usr/bin/install -c -m 644 libpng.3 libpngpf.3 '/usr/local/libpng/share/man/man3'
/usr/bin/mkdir -p '/usr/local/libpng/share/man/man5'
/usr/bin/install -c -m 644 png.5 '/usr/local/libpng/share/man/man5'
/usr/bin/mkdir -p '/usr/local/libpng/lib/pkgconfig'
/usr/bin/install -c -m 644 libpng12.pc '/usr/local/libpng/lib/pkgconfig'
/usr/bin/mkdir -p '/usr/local/libpng/include/libpng12'
/usr/bin/install -c -m 644 png.h pngconf.h '/usr/local/libpng/include/libpng12'
D:/BuildChanTools/x86_64-4.9.4-release-posix-sjlj-rt_v5-rev0/mingw64/bin/mingw32-make install-data-hook
mingw32-make[2]: Entering directory 'C:/Users/m/Downloads/libpng-1.2.56.tar/libpng-1.2.56'
cd /usr/local/libpng/include; rm -f png.h pngconf.h
cd /usr/local/libpng/include; cp -pR libpng12/png.h png.h
cd /usr/local/libpng/include; cp -pR libpng12/pngconf.h pngconf.h
cd /usr/local/libpng/lib/pkgconfig; rm -f libpng.pc
cd /usr/local/libpng/lib/pkgconfig; cp -pR libpng12.pc libpng.pc
mingw32-make[2]: Leaving directory 'C:/Users/m/Downloads/libpng-1.2.56.tar/libpng-1.2.56'
mingw32-make[1]: Leaving directory 'C:/Users/m/Downloads/libpng-1.2.56.tar/libpng-1.2.56'
安装后的目录/usr/local/libpng/
└─libpng
├─bin
├─include
│ └─libpng12
├─lib
│ └─pkgconfig
└─share
└─man
├─man3
└─man5
如果你的msys安装了pkg-config，可以查看编译链接参数
查看PKG_CONFIG_PATH
$ echo $PKG_CONFIG_PATH
/usr/lib/pkgconfig:/usr/share/pkgconfig:/lib/pkgconfig
把libpng库目录里的lib/pkgconfig/下面的pc文件拷贝到/usr/lib/pkgconfig/目录
之后查看编译链接参数
$ pkg-config --cflags --libs libpng12
-ID:/BuildChanTools/msys64/usr/include/libpng12 -LD:/BuildChanTools/msys64/usr/lib -lpng12
编译完成了
注意
msys的文件系统路径在安装目录下（/usr,/home,/etc,/dev...）
使用测试
g++ test.cpp -ID:/BuildChanTools/msys64/usr/include/libpng12 -LD:/BuildChanTools/msys64/usr/lib -lpng12 -o test.exe
./test.exe
